J30jzxpn15tjnap01 Aviation 15-Core Straight Pin Micro Rectangular Connector.

Application : PCB

Contact Finish : Gold

Origin : China

Operating Frequency : Low Frequency

Model NO. : J30JZXPN15TJNAP01

Poles : 8-16, 15

Termination : Press-Fit

Housings : Aluminium Alloy

HS Code : 8536901900

Fastening Type : Detent Lock

Output : 10000

MOQ : 10 Pieces

Gender : Male and Female

Mounting Type : Surface Mount

Price : US $10.6-14.8 / Pie

Contact Now

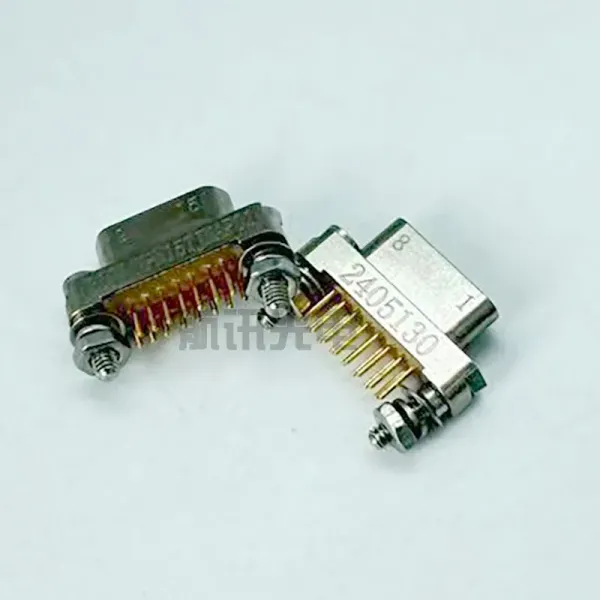

J30JZXPN15TJNAP01 mili-tary Aviation 15-Core Straight Pin PCB Connector.

J30JZXPN15TJNAP01 is a mili-tary-grade low-insertion-force micro rectangular electrical connector specially developed for the mili-tary aviation field. Belonging to the J30JZ series, it is widely used in harsh interconnection scenarios such as aerospace, airborne equipment and mili-tary electronic systems. This product is designed as a 15-core socket with jacks, adopting a nickel-plated aluminum alloy shell and complying with the GJB2446A mili-tary standard. The contact can effectively save installation space. It also has excellent anti-vibration and anti-interference performance to ensure stable interconnection under extreme working conditions.

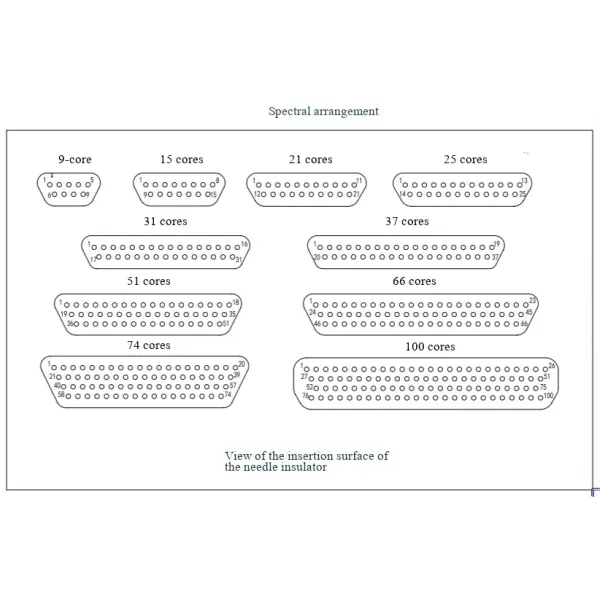

Specification

Environmental conditions for use:
Environmental temperature: -55C~+125C ℃

Vibration: 10Hz~2000Hz 196m/s ² Random

Vibration: Power spectral density 0.4G ²/Hz Root mean square value of total acceleration 23.1G

Impact: 735m/s ² 11ms

Main technical characteristics (under normal conditions):
Rated current: 3A

Contact resistance: 10m Ω

Insulation resistance: 5000M Ω

Voltage withstand: 600V

Mechanical life: 2000 times

J30jzxpn15tjnap01 Aviation 15-Core Straight Pin Micro Rectangular Connector.

Company Profile

Jiangsu HangXun Optoelectronics Technology Co., Ltd.

Qualification Certificate

Jiangsu Hangxun Photoelectric Technology Co., Ltd. is engaged in the research and development, production, and sales of electrical connectors and cable assemblies. With 12 years of experience in the industry, the company possesses strong design, research, and manufacturing capabilities. The factory covers an area of 1520 square meters.
Main products:1.rectangular connector:J30J,J30JA,J30JZ and HJ30J.
2.Wire harness customization:Customization of communication wire harness and drone wire harness.

Our company holds a certificate of quality management system certification for weapon equipment, issued by a professional organization, covering the manufacturing of electronic connectors and the sales of cable assemblies (excluding those requiring specific qualifications).

Connector assembly workshop

Wire harness processing workshop

J30J-ZKN/ZKN-J/ZKS

J30J-25ZKSP

J30J-25 core plug/socket crimp with wire

F1031 series 12-pin aviation plug to RJ45 connector

J30J series to DB9 serial port cable

J30J-51TJL-(one divided by eight)

Essential knowledge for product selection

If there are no special instructions from the user when selecting wire pressing products, the J30JZ series products are equipped with AFR-250-0.12-250V white wires with a length of 250mm. If the user has special requirements for the wires, they should be indicated in the following format after the plug or socket model:
a) Wire specifications: directly indicate the wire specifications (cross-sectional area), if omitted, it defaults to 0.12mm ²; (Suitable for specifications of 0.07~0.15mm ²) wire color Directly indicate the color of the wire, if omitted, it defaults to white.
c) Wire length: The length of the wire extending from the end face of the outer shell, measured in millimeters.
a) External protection of wires: directly indicate the type and requirements of external protection for wires, including nylon wire sleeves, metal shielding mesh, and heat shrink tubing.
If there is no technical agreement or consensus has not been reached before, the empty points in the product shall be blocked with sockets or pin fittings that have not been crimped with wires.
If the user has other special requirements for the wiring of the product (such as using single core wires, uncoated wire surfaces, tin plated wire surfaces, different wiring requirements for each hole, etc.), the wiring requirements should be specified in the contract.

FAQ

Q: Are you a manufacturing company or a trading company?: A: We are a manufacturer specializing in the customization of connectors and wiring harnesses.
Q: Do you provide samples? Are they free of charge?: A: We can provide a small quantity of free samples, but you will need to cover the shipping costs.
Q: What about the shipping time?: A: If there is stock, we will ship the item within 3-5 working days after confirming the deposit.Otherwise, it depends on the quantity you need.
Q: What payment methods do you support?: A: Telegraphic transfer, Alipay, Western Union, etc
Q: What types of products do you produce?: A: For rectangular connectors, wire harness customization, etc., please contact customer service for detailed communication.
